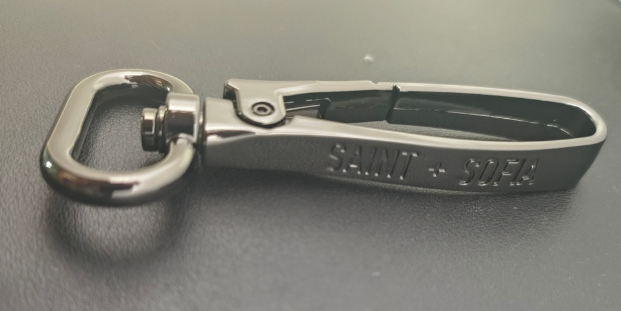

Custom‑Shape Heavy‑Duty Zinc‑Alloy Swivel Snap‑Hook | Luggage‑Hardware Guide | OYC Hardware
Heavy‑duty custom‑shape zinc‑alloy swivel snap‑hooks are high‑load‑capacity connecting fittings for backpacks, travel luggage and heavy‑use leather‑goods. Compared with standard‑size snap‑hooks, thicker wall construction delivers improved tensile strength for demanding application scenarios.
This article covers key specifications, customisation options, comparison between custom‑made and standard snap‑hooks, plus three core performance‑verification tests for hardware procurement reference.
Product & Technical Specification Overview
| Item | SAINT+SOFIA logo Swivel Snap Hook |
| Meterial | Zinc alloy |
| Brand | SAINT+SOFIA |
| Type | Dog hook |
| Model | OYC0375 |
| Application | Travel backpack ，knapsack |
Available Custom‑Project Options For Snap‑Hooks
- Custom plating & colour finishes
- Embossed /debossed custom logo engraving
- Bespoke dimension and outer‑shape development
- Custom‑tailored packaging solutions for bulk‑order shipments
Custom‑Developed vs Off‑The‑Shelf Standard Snap‑Hooks: Side‑By‑Side Comparison
| Comparison Dimensions | Custom dog hook | Standard Dog hook |
| Design Structure | Structure, complex shape, customizable to meet requirements | Standardized Structure |
| Material Selection | Different materials are available.Customized color | Limited material options, basic colors |
| Functionality Expansion | customized logo, Pattern | No customization features; only meets basic fixed requirements. |
| Durability and Safety | Through tensile testing, opening and closing testing, and salt spray testing | The spring may loosen, leading to incomplete closure. Corrosion resistance depends on the underlying electroplating process, posing a risk of disengagement. |
| Price and Cost | Higher cost (materials, craftsmanship, customization) | Lower cost, suitable for the mass market, economical yet durable, though safety and reliability may be limited |
Tensile Test: Verifying the Maximum Load Capacity of Dog Buckles
Purpose: Measure the ultimate tensile load the snap‑hook can sustain before structural cracking or failure.
Test procedure: Secure the tail‑end of the snap‑hook to a force gauge; steadily apply increasing tension on the hook head, and record the load value when initial cracking or structural deformation occurs.
Abrasion‑Resistance Test: Assess Surface‑Finish Wear‑Performance
Purpose: Ensure that dog hooks do not experience rapid surface wear from friction with other materials during daily use, thereby maintaining their functionality and appearance.
Secure the dog buckle to the abrasion testing machine, set the number of abrasion cycles, and inspect the buckle surface for scratches, paint chipping, or other damage after abrasion. If no scratches or paint chipping are present, the plating layer is deemed satisfactory; otherwise, it is considered defective.

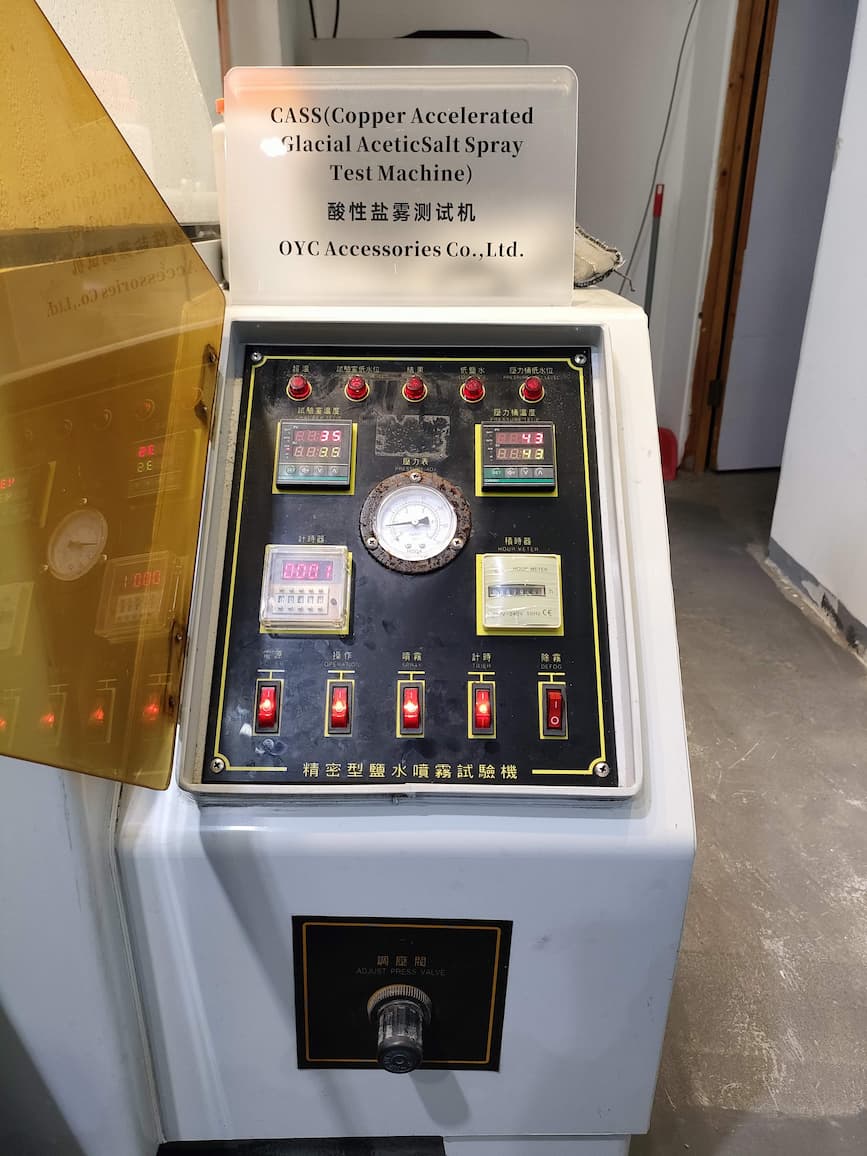

Salt‑Spray Corrosion Test: Evaluate Anti‑Rust Performance
Purpose: To verify the rust and corrosion resistance of fasteners in humid or saline environments
Place the dog clips into a salt spray test chamber and add a 5% ± 0.5% sodium chloride solution to create a salt spray environment. After continuous testing for 24 hours, observe whether the dog clips exhibit rust. If no significant rust marks are visible, the result is considered satisfactory.
FAQ for Heavy‑Duty Custom Snap‑Hook Procurement
Q1: What key differences separate heavy‑duty snap‑hooks from regular‑strength snap‑hooks?
A: Heavy‑duty versions adopt thicker wall‑thickness for improved tensile‑load capacity; they are built for backpack, luggage and high‑weight‑bearing scenarios, instead of lightweight fashion handbags.
Q2: Can custom‑shape snap‑hooks keep the same load‑bearing performance as standard heavy‑duty models?
A: Custom‑shape designs must validate wall‑thickness and stress‑concentration points at sample phase. Complex cut‑out shapes may reduce load‑capacity and need tensile‑test verification.
Q3: What test items should buyers specify for custom heavy‑duty snap‑hook orders?
A: Ultimate tensile‑strength requirement, abrasion‑cycle criteria, salt‑spray‑test hours, spring‑gate fatigue‑cycle test, plus plating‑adhesion acceptance standards.
Q4: Is custom‑mould snap‑hook suitable for small‑batch trial orders?
A: Custom‑shape development incurs mould‑setup‑cost; for small‑batch projects, evaluate whether existing heavy‑duty stock snap‑hooks can satisfy your requirements to save tooling expense.
Q5: What common failure‑modes occur for heavy‑duty snap‑hooks in real‑world usage?
A: Spring‑gate losing tension, hook‑body cracking under overload, plating peeling from friction, swivel‑joint jamming. All these risks can be screened via pre‑production sample testing.
Conclusion
Heavy‑duty custom‑shape zinc‑alloy swivel snap‑hooks are intended for high‑stress applications such as travel backpacks and load‑bearing luggage. Compared with standard stock snap‑hooks, custom‑mould versions support bespoke shape, logo and finish, yet require clear definition of performance requirements.
Tensile‑strength, abrasion‑resistance and salt‑spray corrosion‑resistance are three essential verification indicators. Buyers should define target test thresholds in specifications and validate on physical samples before bulk‑order release, to avoid load‑failure or surface‑degradation risks in end‑products.
OYC Hardware supplies stock and custom‑mould heavy‑duty zinc‑alloy snap‑hooks for global leather‑goods buyers, and can provide corresponding performance‑test documentation for cross‑border bulk‑orders.
