How to choose D-rings, square buckles and dog clips for luggage? A guide explaining the functional differences and key purchasing considerations for these three types of fasteners
Among luggage hardware fittings, D-rings, square buckles and dog clips are three of the most commonly used fasteners. Many buyers tend to confuse these types when selecting products, or focus solely on appearance whilst overlooking structural compatibility. Drawing on real-world usage scenarios, this article compares the morphological characteristics, load-bearing properties and selection recommendations for these three types of hardware, providing guidance for buyers at luggage manufacturers, leather goods designers and order coordinators in the international trade sector.

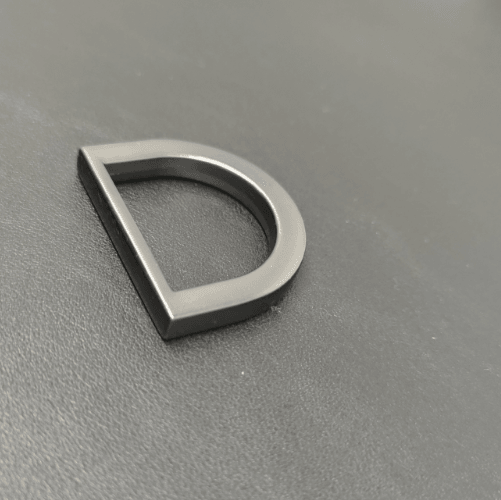

D-ring: With its smooth, curved surface, it is ideal for connecting webbing to shoulder straps.
The D-ring takes its name from its ‘D’-shaped profile; the straight edges are typically used to thread webbing or leather straps, whilst the curved edges are used to attach other accessories.
D rings Structural Features
- The cross-section is typically circular or oval in shape and made of metal wire
- Common types of fasteners: open D-rings (can be opened to thread a strap through) and closed D-rings (moulded as a single piece, cannot be opened)
- Standard dimensions: internal width 10 mm–30 mm, wire diameter 2.0 mm–5.0 mm
Applications
- Movable connection between backpack shoulder straps and the bag body
- Transition piece between the carry handle and the bag fastener
- Used in conjunction with snap fasteners or hook-and-loop fasteners as a secure attachment point
Selection Guidelines
- Open-ended D-rings are prone to deformation under load and are not recommended for bag structures carrying loads exceeding 5 kg.
- Closed-ended D-rings offer greater strength and are suitable for large-capacity rucksacks and outdoor luggage.
- For surface finishes, nickel plating, antique bronze and black gold are the preferred options, as they offer good abrasion resistance.

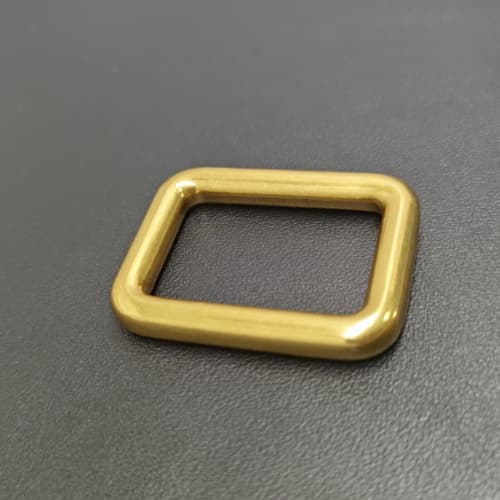

Square buckles: angular in shape, commonly found on belt loops and adjustment mechanisms
Rectangle Buckle are rectangular or rectangular with rounded corners, and are more commonly used for adjusting the length of webbing or as decorative fastenings
Structural Features
- Closed on three sides, with a movable crossbar on one side (on certain models)
- Neat internal space, suitable for threading flat webbing
- Size range: internal width 15 mm–40 mm, thread diameter 3.0 mm–5.0 mm
Square buckles Applications
- Adjusting the side drawstrings on rucksacks
- Adjusting the length of straps on bum bags or chest bags
- Fitted as a decorative buckle on the bag flap or front panel
Selection Guidelines
- For adjustable square buckles, the slider should move smoothly along the strap; however, this does not mean that looser is better, as excessive looseness may cause the strap to slip out of position.
- Decorative square buckles have no moving parts; focus on ensuring the finish is free from pinholes and that the plating is even.
- Brass square buckles with a brushed finish are more suitable for high-end leather briefcases.
Dog Hook: a hook-shaped fastener designed for quick attachment and detachment
Also known as a spring-loaded carabiner or hook fastener, it features a spring-loaded opening that allows for one-handed operation.
Structural Features
- Comprising a hook body, a spring plate, and a pull ring or push button
- Opening mechanism: push-button or lever-operated
- Common types: straight-hook snap fasteners, swivel snap fasteners, and snap fasteners with a loop
Applications
- Quick connection between a shoulder bag strap and a D-ring
- Between a pet lead and a collar
- An attachment point for external items on outdoor bags
Dog Hook Selection Guidelines
- Springs are prone to wear and tear; when purchasing, you may request that they be tested for over 3,000 opening and closing cycles.
- Zinc alloy snap fasteners have an attractive appearance but are not suitable for heavy-duty pulling; iron snap fasteners offer greater strength.
- For export orders, please note the ROHS environmental plating requirements; for applications with high anti-allergy requirements, eco-friendly nickel plating may be selected.
Comparison of three types of fasteners: when purchasing, first consider the structure, secondly the load-bearing capacity, and thirdly the compatibility
| Comparison items | D Ring | square buckle | dog clip |
| Form | Semi-circle + straight edge | rectangle | hooked |
| Can it be opened and closed? | Partially open type | Usually not available | openable |
| Key features | Fixed mounting point | Adjustable/decorative webbing | Quick assembly and disassembly |
| Load-bearing capacity | Closed-type is stronger | Generally | Moderate to low intensity |
| Recommended materials | Iron-zinc alloy | Brass/environmentally friendly alloy | Iron |
| Frequently Asked Questions | Deformation of the opening | Crossbar jamming | Spring failure |
Recommendations for combining accessories: Matching hardware based on the location on the bag
In practical luggage design, these three types of fasteners are often used in combination:
Backpack Strap System
Webbing → Square buckle (for length adjustment) → Webbing folded back and stitched → D-ring (for securing attachment points) → Snap hook (for connecting to the bag body)
Women’s Handbag (Hand-held and Shoulder Strap)
Use a closed D-ring at the base of the handle and a snap hook for attaching a detachable long shoulder strap
Outdoor Luggage External Attachment System
Sew webbing loops onto the bag body, thread closed D-rings through these loops, and attach external gear via snap hooks
Pet Bags / Pet Leashes
Use metal snap hooks at the main load-bearing points and large D-rings for connecting components; avoid using small-sized zinc alloy fittings
Frequently Asked Questions on Procurement (Based on Feedback from Actual Order Processing)
Focusing on appearance whilst neglecting structure
The same model of D-ring comes in open and closed variants; whilst they look similar, their load-bearing capacity differs by more than double. Before purchasing, confirm whether the component is load-bearing.
Dog-clip springs have not undergone durability testing
The fact that small batches of samples open and close smoothly does not guarantee consistency in mass production. We recommend that you request random testing of spring tension for each batch
Internal width of square buckles does not match webbing width
The internal width of square buckles should be 1–2 mm wider than the webbing. If too tight, friction will cause pilling; if too loose, the buckle will fail to secure the adjustment position.
Surface finish does not match the usage environment
For outdoor luggage, we recommend electrophoretic black or black gold finishes, as these are more resistant to sweat and moisture than standard nickel plating.
Basic Process for Custom Moulding (For the Purchaser’s Reference)
When standard sizes or styles of D-rings, square buckles, or dog clips do not meet design requirements, designers may employ custom moulding.
Our factory’s standard customisation procedure:
- Provide drawings or physical samples
- Confirm materials, dimensions and surface finishes
- Produce moulds (varying for zinc alloy, iron and brass moulds)
- Produce prototypes for approval
- Mass production
Quick Reference Guide to Frequently Asked Questions
- Q: Should a user choose square buckles or D-rings to adjust the straps on a rucksack?
- A: Square buckles adjust the length, whilst D-rings secure attachment points; they serve different functions and users should not interchange them.
- Q: Can dog clips completely replace D-rings?
- A: No. Designers intend dog clips for frequent attachment and detachment, but users employ D-rings to secure attachment points; different types of stress subject them to different forces.
- Q: Are there any special requirements for electroplating in export orders?
- A: The European market commonly requires ROHS-compliant eco-friendly electroplating and nickel release compliance. Our factory can provide hypoallergenic, eco-friendly electroplating processes.
- Q: Is colour fading of luggage hardware a normal occurrence?
- A: Under normal use, the plating layer has a certain number of wear cycles. Vigorous rubbing or contact with chemicals will accelerate wear. We do not make a ‘no colour fading’ guarantee, but our standard processes can meet the normal service life of branded luggage.
- Q: can you engraved the logo on the surface of square buckle ?
- A: according the mould design,can egraving on the crossbar or outerside
